The ANTIL APF Series is an economical, compact automatic loading and unloading unit specifically designed for CNC turret punch presses. It features minimal floor space requirements, reduced labor, fast cycle times, and easy retrofitting, making it the ideal high-value choice for small to medium-sized sheet metal factories upgrading their punch press automation.

I. Core Positioning

Compatible Models: All major brands of CNC turret punch presses (3015 standard table size)

Applications: Elevator components, electrical cabinets, server racks, decorative sheet metal, and other small-to-medium batch, high-frequency job-change punching operations.

Core Value: Achieve unattended punch press loading/unloading with the smallest footprint and the lowest investment.

II. Structure & Workflow

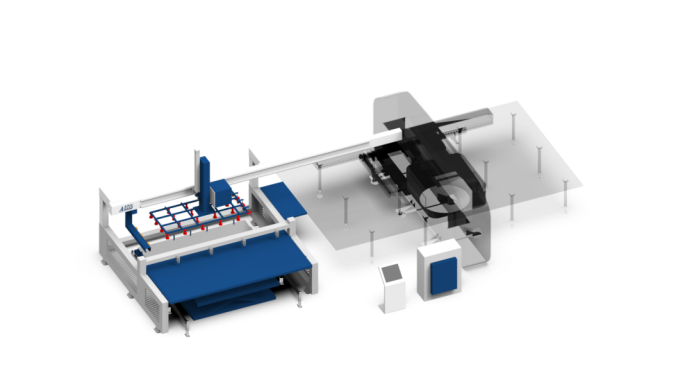

The APF series employs a same-side loading/unloading design with a vacuum suction cup and clamp separation system. The fully automatic closed-loop process consists of the following steps:

· Material Storage: Raw material is stored on the loading table.

· Pick & Prepare: Vacuum suction cups automatically separate sheets, measure thickness, and prevent double-pick errors.

· Precise Loading: The sheet is fed into the punch press worktable with a repeat positioning accuracy of ±0.2 mm.

· Punching Operation: The press works while the automation system waits synchronously without interference.

· Finished Part Unloading: Clamps grasp the finished part and neatly stack it onto the unloading table.

· Cycle Repeat: The process runs continuously, 24/7, unattended.

III. Key Advantages

1. Ultra-Compact Footprint

The same-side loading/unloading design minimizes floor space usage. No major civil works are required for retrofitting existing workshops.

2. Fast 30-Second Cycle

Each loading/unloading cycle takes approximately 30 seconds, matching the punch press rhythm to prevent machine idle time and maximize throughput.

3. Reliable Safety & Error Proofing

Automatic sheet separation + thickness measurement + double-sheet detection eliminates material errors and tool collision risks.

Independently controlled vacuum suction cups and clamps ensure stable gripping without damaging sheets.

Safety light curtains and protective fencing create physical separation between personnel and machine, ensuring zero workplace injuries.

4. Labor Savings & Fast ROI

Replaces 2–3 material handling operators per line and enables unattended night shifts.

With a two-shift operation, the system typically pays for itself in about six months.

5. Modular & Flexible Design

Plug-and-play: Quick integration with both new and existing punch presses without modifying the press mainframe.

Optional upgrades: Lifting raw material table, finished stack table, and additional safety guards.

IV. Technical Highlights

Repeat positioning accuracy: ±0.2 mm, ensuring consistent punching and forming quality

Intelligent control system: Touchscreen operation, one-button start, fault self-diagnostics, and remote monitoring

Material adaptability: Handles 0.8–3 mm thin to medium-thick plates, including carbon steel, stainless steel, and aluminum
